Kysy saatavuus

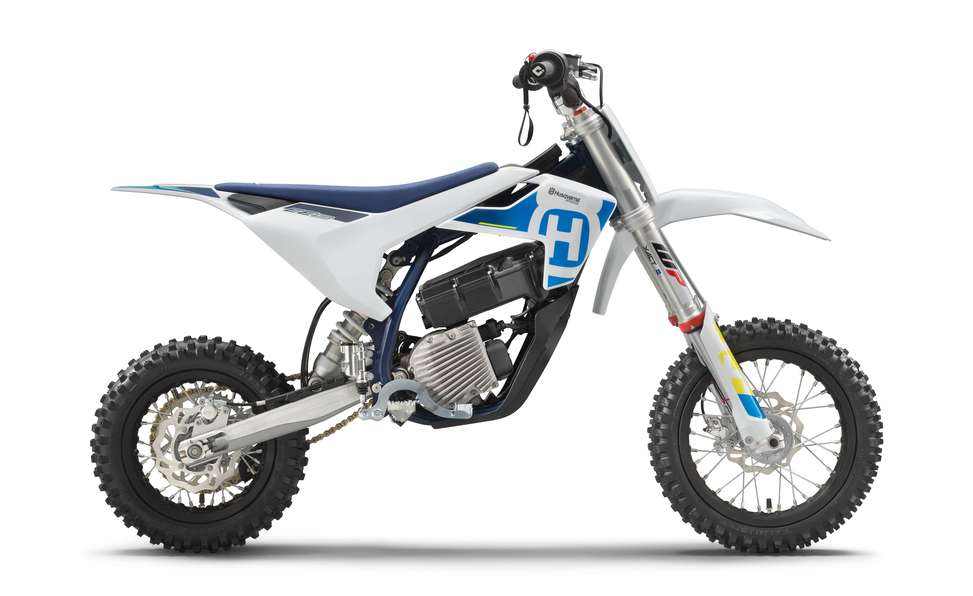

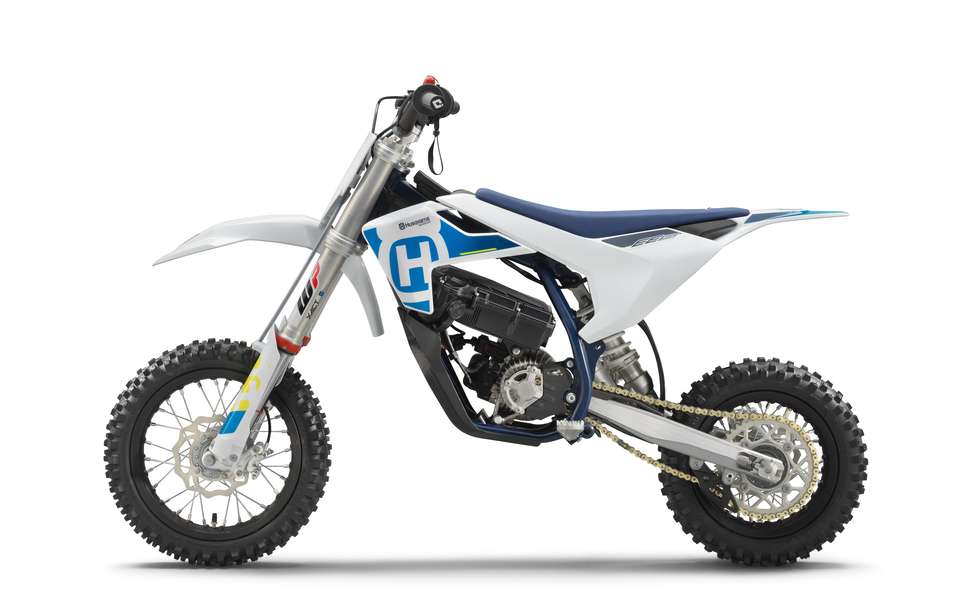

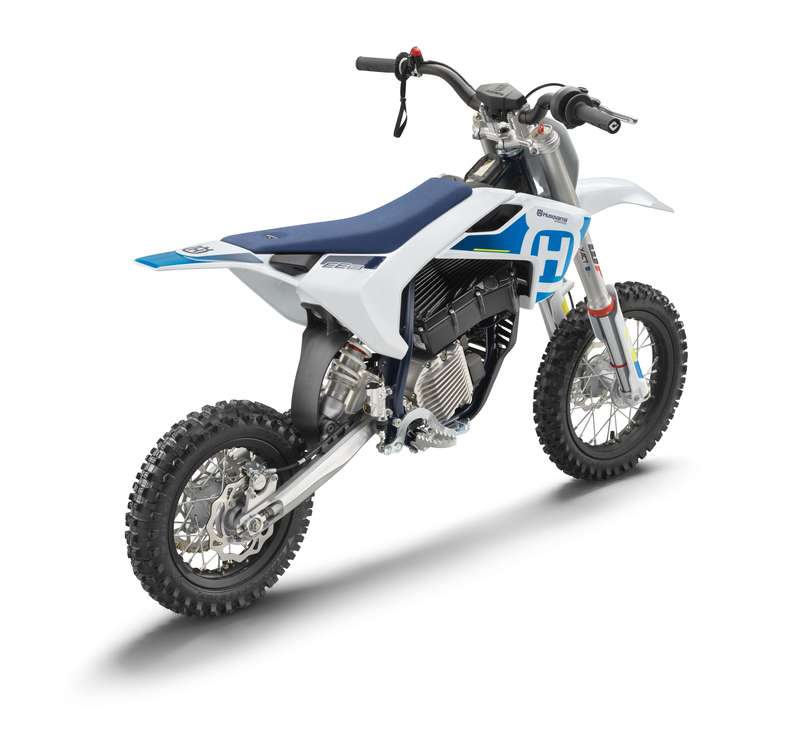

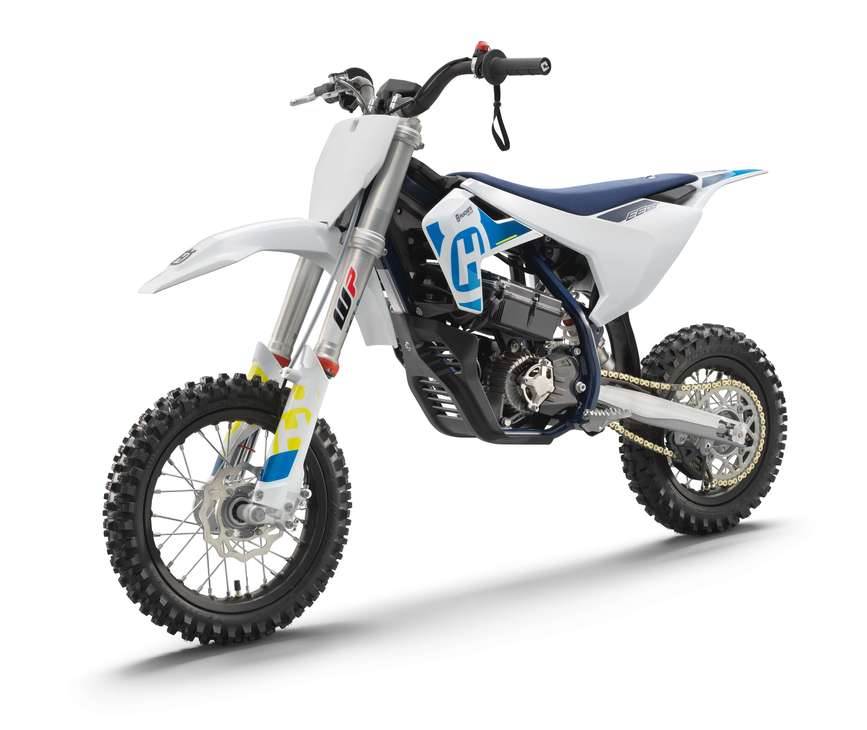

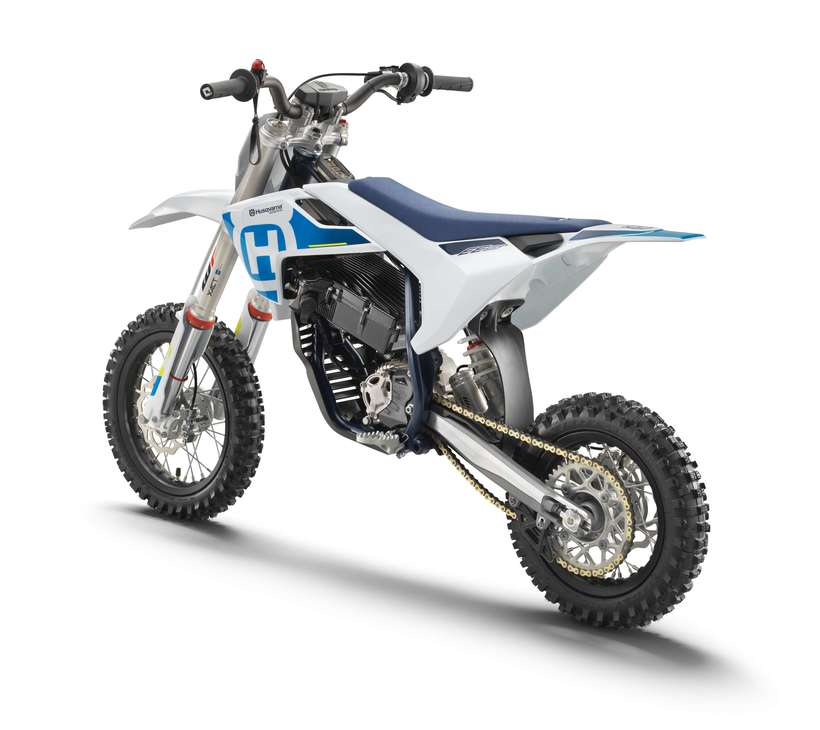

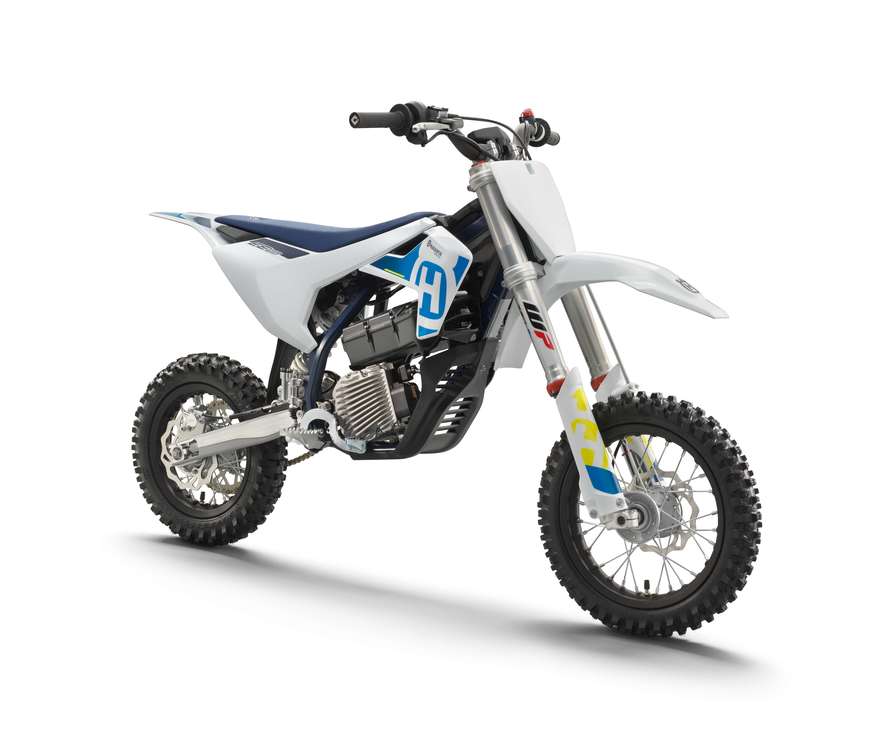

Husqvarna EE 5
2024
6 135,53 € (arvonlisävero 25,5% sisältyy hintaan)
| Toimituskulu: | 190 |
Engine |
|
| Cooling: | Air cooled |
| Charger line voltage: | 80-240 V/50-60 Hz |
| Traction Battery: | Lithium-ion |
| Electric motor: | 48 V - BLDC motor with outer rotor 6000 rpm |
| Charging time 80%: | 45 min. |
| Charging input: | Quick charging 5 A @ 230 V (AC) |
| Battery capacity: | 21 Ah |
| Max. power: | 5 kW / 3,900 rpm |
| Charging power: | 900 W |
| Torque: | 13.8 Nm |
| Rated output: | 2 kW / 3,200 rpm |
| Charging time 100%: | 70 min. |
Chassis |
|
| Frame design: | Chrome-molybdenum steel central-tube frame |
| Chain: | 1/2 x 3/16" |
| Rear suspension: | XACT WP mono shock |
| Seat height: | 665/615 mm |
| Steering head angle: | 66 ° |
| Rear brake disc diameter: | 185 mm |
| Rear brake: | Disc brake |
| Suspension travel (rear): | 185 mm |
| Front suspension: | WP-USD, AER 35, Ø 35 mm |
| Ground clearance: | 252 mm |
| Front brake disc diameter: | 205 mm |
| Front brake: | Disc brake |
| Suspension travel (front): | 205 mm |
